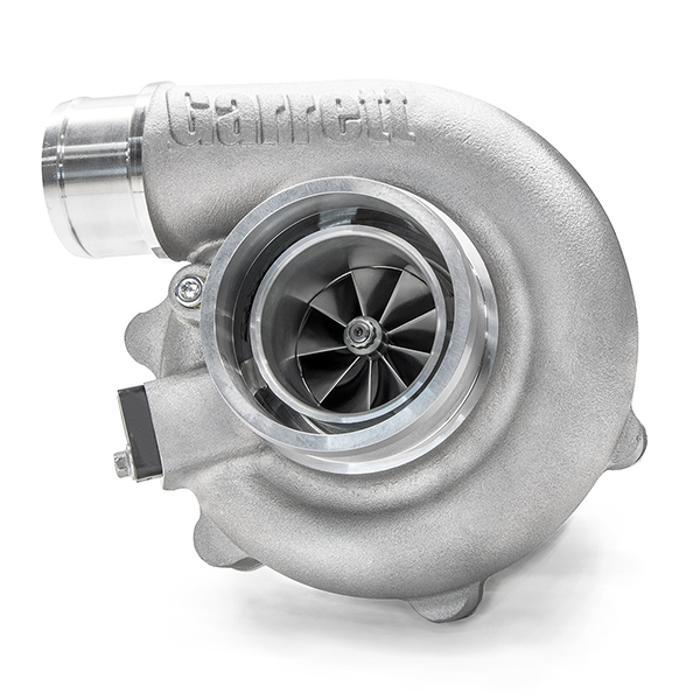

G Series G25-660 Reverse Rotation

Name: G Series G25-660 Reverse Rotation
Brand: Garrett
SKU: 871388-5002S
Price: 1268.88 USD
Availability: InStock

$328.44 - $1,597.31

$1,268.88

$328.44 - $1,597.31

$1,268.88

Quantity

Features

G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
48mm TURBOCHARGER COMPRESSOR WHEEL
80% MAXIMUM COMPRESSOR EFFICIENCY
MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
TURBOCHARGER ASSEMBLIES ARE CALIBRATED WITH A 0.5 BAR ACTUATOR
STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
OIL RESTRICTOR AND WATER FITTINGS INCLUDED
FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
Read About Turbo System Optimization: A guide to setting up your turbocharger
The maximum power stated for each turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.

The latest Garrett technologies featuring many advanced features.

G25-660 Reverse Rotation Supercore Reference Data

SuperCore PN: 871388-5002S

Compressor

Turbine

Inducer

Exducer

Trim

A/R

Inducer

Exducer

Trim

54mm

67mm

65

0.70

54mm

49mm

84

G25-660 Reverse Rotation Turbine Housing Kits	Turbine Kit PN		A/R	Inlet	Outlet	Wastegate	Divided
Free float / non-wastegated turbine housing kits are sold independently of the supercore	740902-0073		0.72	V-Band	V-Band	Free Float	N
	740902-0074		0.92	V-Band	V-band	Free Float	N
	G25-660 Reverse Rotation Turbocharger Assembly	Turbo PN		A/R	Inlet	Outlet	Wastegate	Divided
	Turbo PN is a complete assembly with an internally wastegated turbine housing calibrated using a 0.5 bar actuator	877895-5009S		0.72	V-Band	V-band	Yes	N
		877895-5010S		0.92	V-Band	V-band	Yes	N
