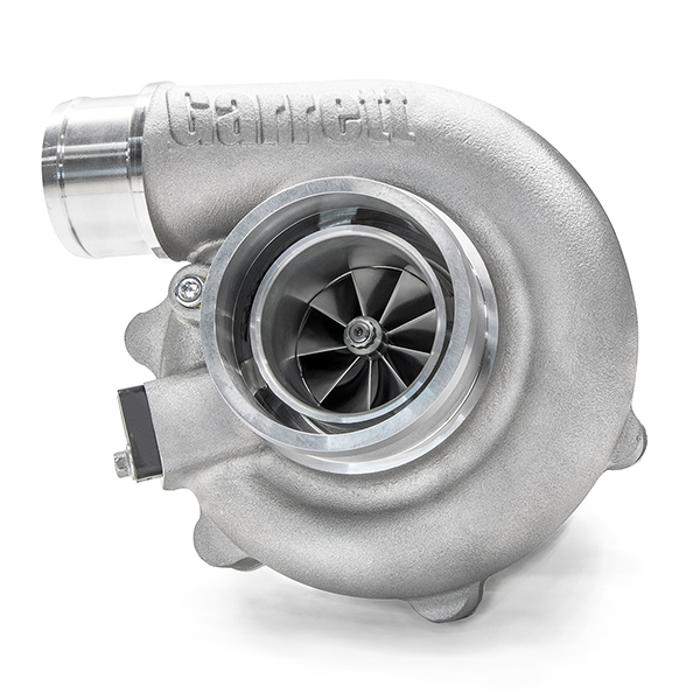

G Series G30-900 Reverse Rotation

G Series G30-900 Reverse Rotation

$540.58 - $1,930.18
$1,930.18
$540.58 - $1,930.18
$1,930.18
  • Description

  • Features

    • G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
    • 62mm TURBOCHARGER COMPRESSOR WHEEL
    • 77% MAXIMUM COMPRESSOR EFFICIENCY
    • MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
    • NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
    • STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
    • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
    • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
    • STANDARD ROTATION SUPERCORE 880693-5003S
    • REVERSE ROTATION SUPERCORE 880694-5003S
    • Read About Turbo System Optimization: A guide to setting up your turbocharger
    • The maximum power stated for each turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.



      G-SERIES G30 900 62MM REVERSE ROTATION

      Reference Data

      The latest Garrett technologies featuring many advanced features.

      G30-900 Reference Data Compressor Turbine
      Inducer Exducer Trim A/R Inducer Exducer Trim
      HP: 550-900 Disp: 2.0L-3.5L 62mm 76mm 65 0.72 60mm 55mm 84



      G30-900 Standard Rotation Supercore PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
      880693-5003S 740902-0092 1.06 T4 V-Band Free Float Y
      740902-0090 0.83 T3 V-band Free Float N
      740902-0091 1.01 T3 V-band Free Float N
      740902-0086 0.61 V-Band V-band Free Float N
      740902-0087 0.83 V-Band V-band Free Float N
      740902-0088 1.01 V-Band V-band Free Float N
      740902-0089 1.21 V-Band V-band Free Float N
      G30-900 Reverse Rotation Supercore PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
      880694-5003S 740902-0100 0.83 T3 V-Band Free Float N
      740902-0101 1.01 T3 V-band Free Float N
      740902-0096 0.61 V-Band V-band Free Float N
      740902-0097 0.83 V-Band V-band Free Float N
      740902-0098 1.01 V-Band V-band Free Float N
      740902-0099 1.21 V-Band V-band Free Float N
