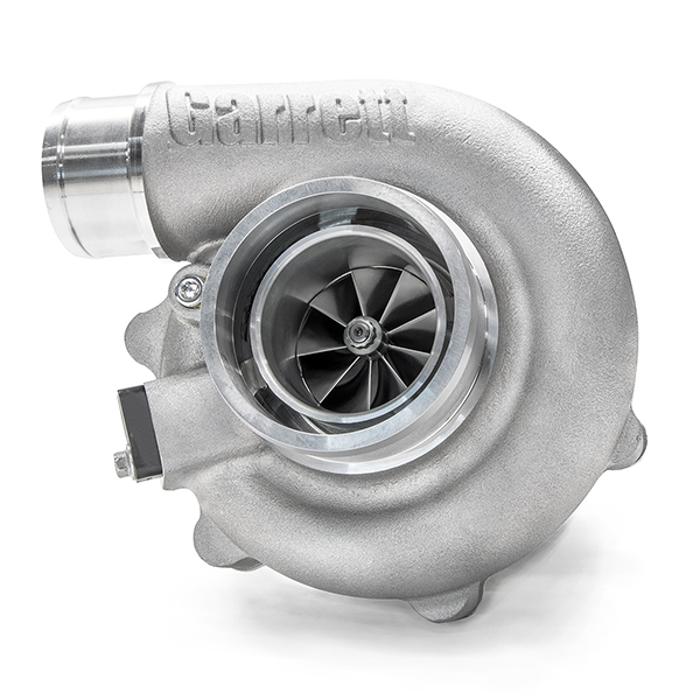

G Series G35-1050 Reverse Rotation

G Series G35-1050 Reverse Rotation

$481.90 - $2,062.36
$1,552.54
$481.90 - $2,062.36
$1,552.54
  • Description

    • Features
      • G SERIES COMPRESSOR AERODYNAMICS FOR MAXIMUM HP
      • 68mm TURBOCHARGER COMPRESSOR WHEEL
      • 78% MAXIMUM COMPRESSOR EFFICIENCY
      • MAR-M ALLOY TURBINE WHEEL RATED UP TO 1050° C
      • NEW TURBINE AERO PROVIDES HIGHER FLOW AND EFFICIENCY
      • STAINLESS STEEL TURBINE HOUSINGS RATED UP TO 1050° C
      • OIL RESTRICTOR AND WATER FITTINGS INCLUDED
      • FULLY MACHINED SPEED SENSOR AND PRESSURE PORTS
      • STANDARD ROTATION SUPERCORE 880695-5002S
      • REVERSE ROTATION SUPERCORE 880696-5002S
      • Read About Turbo System Optimization: A guide to setting up your turbocharger
      • The maximum power stated for each turbocharger has been calculated based strictly on choke flow of the compressor map (total turbo capability), which represents the potential flywheel power. Performance results of this product are highly dependent upon your vehicle’s modifications and tuning/calibration. Please consult with your local distributor before making a purchase.

        G-SERIES G35 1050 68MM REVERSE ROTATION

        Reference Data

        The latest Garrett technologies featuring many advanced features.

        G35-1050 Reference Data Compressor Turbine
        Inducer Exducer Trim A/R Inducer Exducer Trim
        68mm 84mm 65 0.75 68mm 62mm 84





        G35-1050 Reverse Rotation Supercore PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
        880696-5002S 740902-0116 0.83 T3 V-Band Free Float N
        740902-0117 1.01 T3 V-band Free Float N
        740902-0112 0.61 V-Band V-band Free Float N
        740902-0113 0.83 V-Band V-band Free Float N
        740902-0114 1.01 V-Band V-band Free Float N
        740902-0115 1.21 V-Band V-band Free Float N
        G35-1050 Standard Rotation Supercore PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
        880695-5002S 740902-0108 1.06 T4 V-Band Free Float Y
        740902-0106 0.83 T3 V-band Free Float N
        740902-0107 1.01 T3 V-band Free Float N
        740902-0102 0.61 V-Band V-band Free Float N
        740902-0103 0.83 V-Band V-band Free Float N
        740902-0104 1.01 V-Band V-band Free Float N
        740902-0105 1.21 V-Band V-band Free Float N
